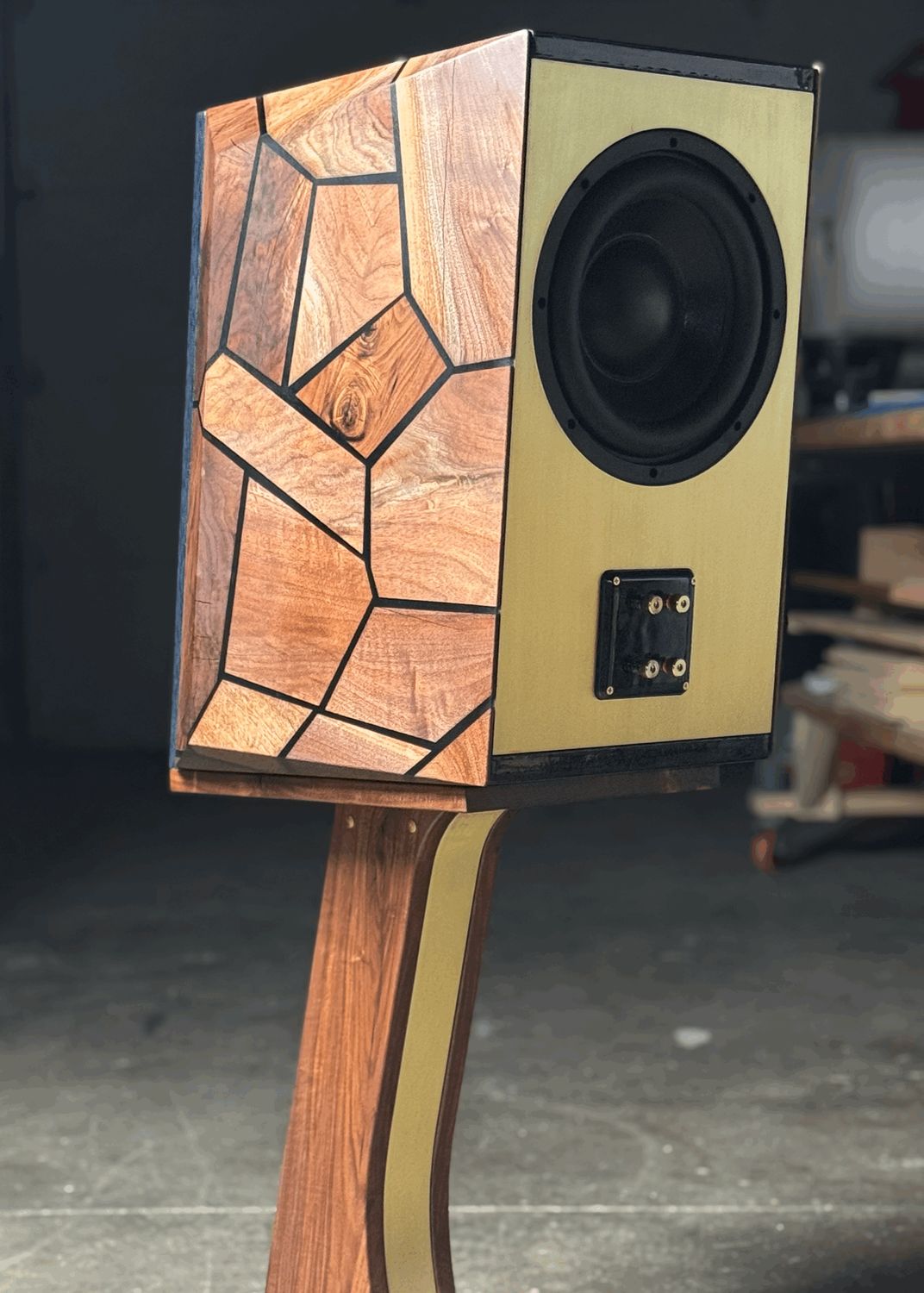

Project Plans - DS1001 10" Waveguide and SDX10
+2

Project Plans - DS1001 10" Waveguide and SDX10

$50
LD25X-SF Tweeter Designed for Waveguides
Woofer
Passive Radiators
Buy The Plans
1
Save this product for later
Share this product with your friends
Pin it
Project Plans - DS1001 10" Waveguide and SDX10
Product Details


If you've seen this video and want to build this speaker, you can get the plans here. These plans include the following:

  • 3D and 2D CAD for a rectangular box to make it easier to build
  • Crossover schematics
  • 3D files for the crossover boards
  • 3D files for the waveguide.


Please note, the standard LD25X will not fit the waveguide. You will need the LD25X-SF we use with our waveguides which isn't available anywhere else on our website. You can purchase it here individually or as an add on to the package.
