DIY Speaker Kit | Veritas Three (Pair)

$3,249

On Sale

Was ~~$3,499~~ Save $250

Crossover

Superior (with Jantzen Superior Z-Caps in Tweeter Circuit)

Amber (with Jantzen Amber Z-Caps in Tweeter Circuit)

Flat Pack

No Flat Pack

With Flat

Add "Crafted By: YOUR NAME" to Your Binding Post Plate

Enter your text

Quantity:

Save this product for later

DIY Speaker Kit | Veritas Three (Pair)

Product Details

Weight: 48 lbs

Pre-oder is open now. Kits are expected to ship by July 31.

This kit comes standard with grills and our premium binding posts!

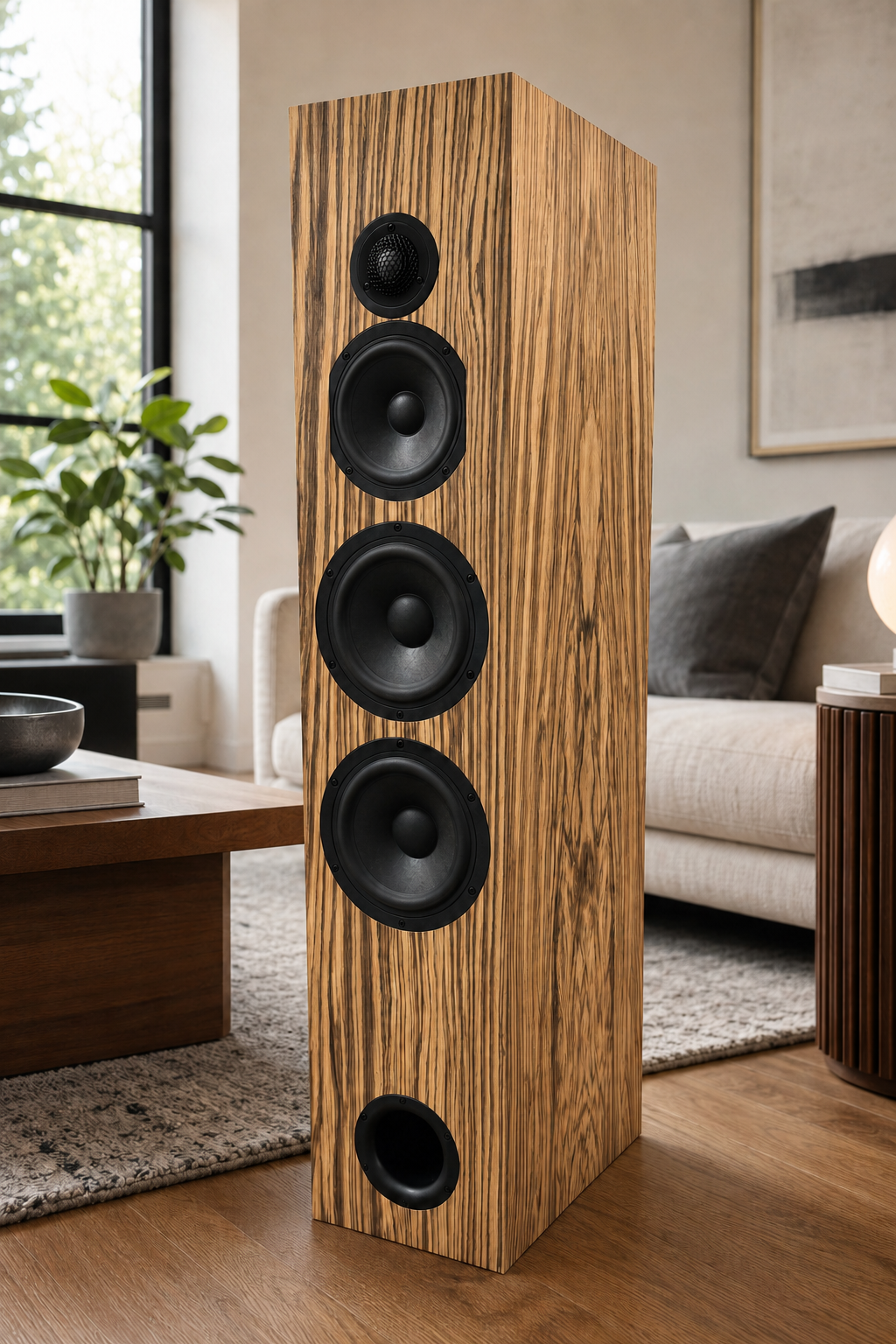

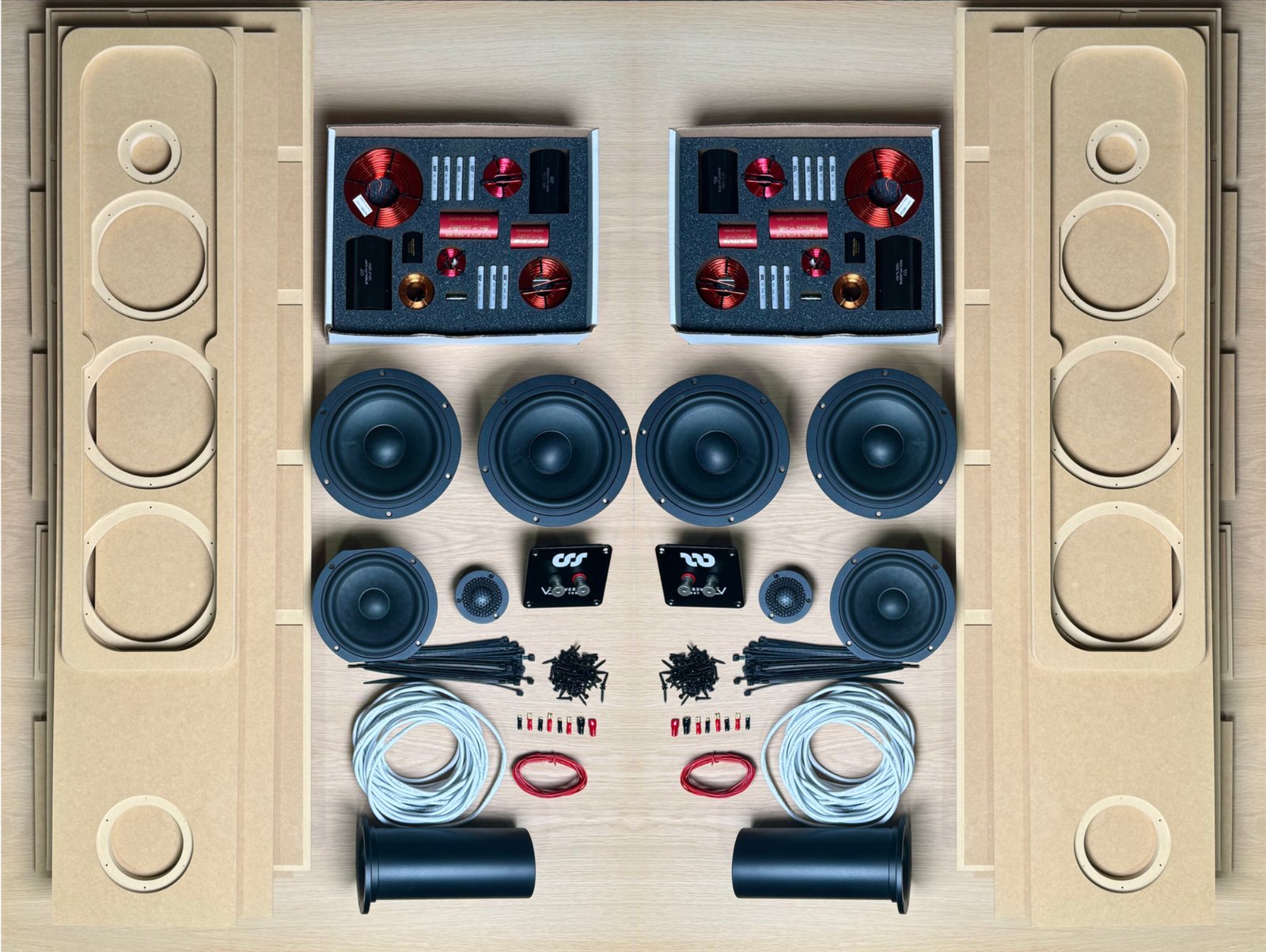

The CSS Veritas Three is a fairly compact, ultra-wide dispersion DIY 3-way tower speaker kit designed to deliver true high-end performance without the guesswork of designing a speaker from scratch. Built around a premium beryllium tweeter, it offers exceptional clarity, low distortion, precise imaging, and a smooth, refined top end that stays easy to listen to for hours. Unlike a typical parts bundle, the Veritas One is a fully engineered system with matched drivers, a carefully designed crossover, SmartNode boards, damping material, ports, wiring, and optional flat pack cabinets. It gives builders a complete, repeatable path to a reference-level speaker at a fraction of what comparable finished speakers would cost.

Overview

Features:

All new Veritas LD25B-06 beryllium tweeter
High output capability
Deep and clean bass response
Extremely broad dispersion with minimal deviations in the directivity index
Custom aluminum flanged 3" ports
Grill kit and premium binding posts included

The crossover for this kit has 2 options:

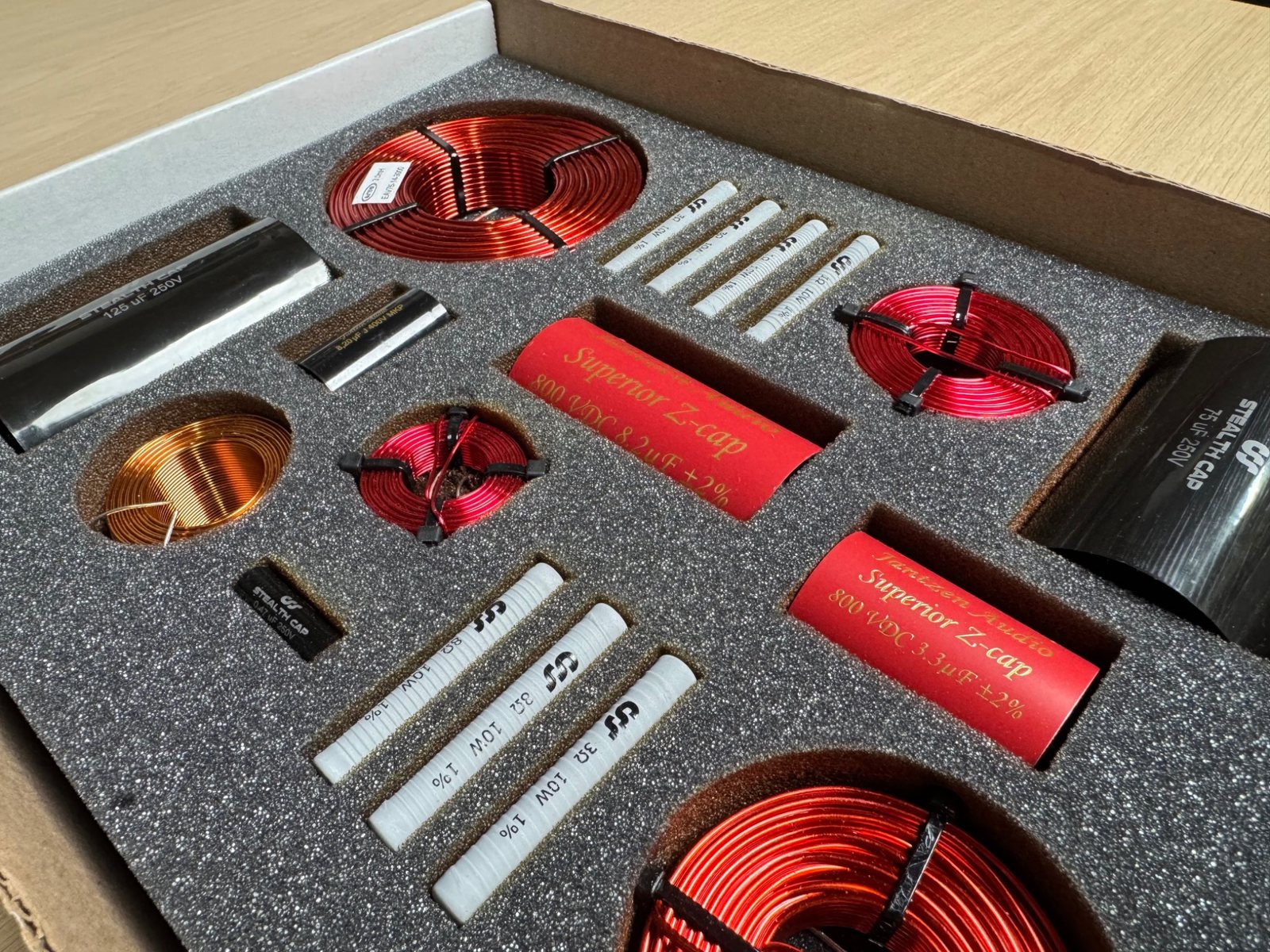

Our Superior Crossover with Jantzen Superior Z-Caps, which has Jantzen Superior Z-Caps on the tweeter, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.
Our Superior Crossover with Jantzen Amber Z-Caps, which uses Jantzen Amber Z-Caps with a pure copper foil in the tweeter section, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.

Specifications

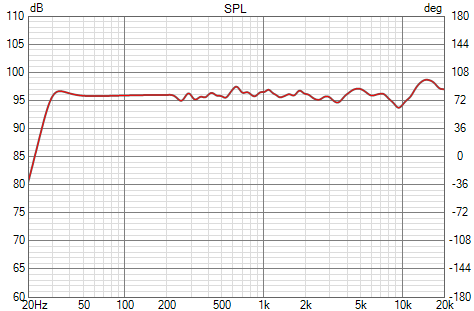

Frequency Response: 32 Hz to 35 kHz +/- 3 dB
In-Room Response: 20 Hz to 40 kHz
Sensitivity: 88.1 dB

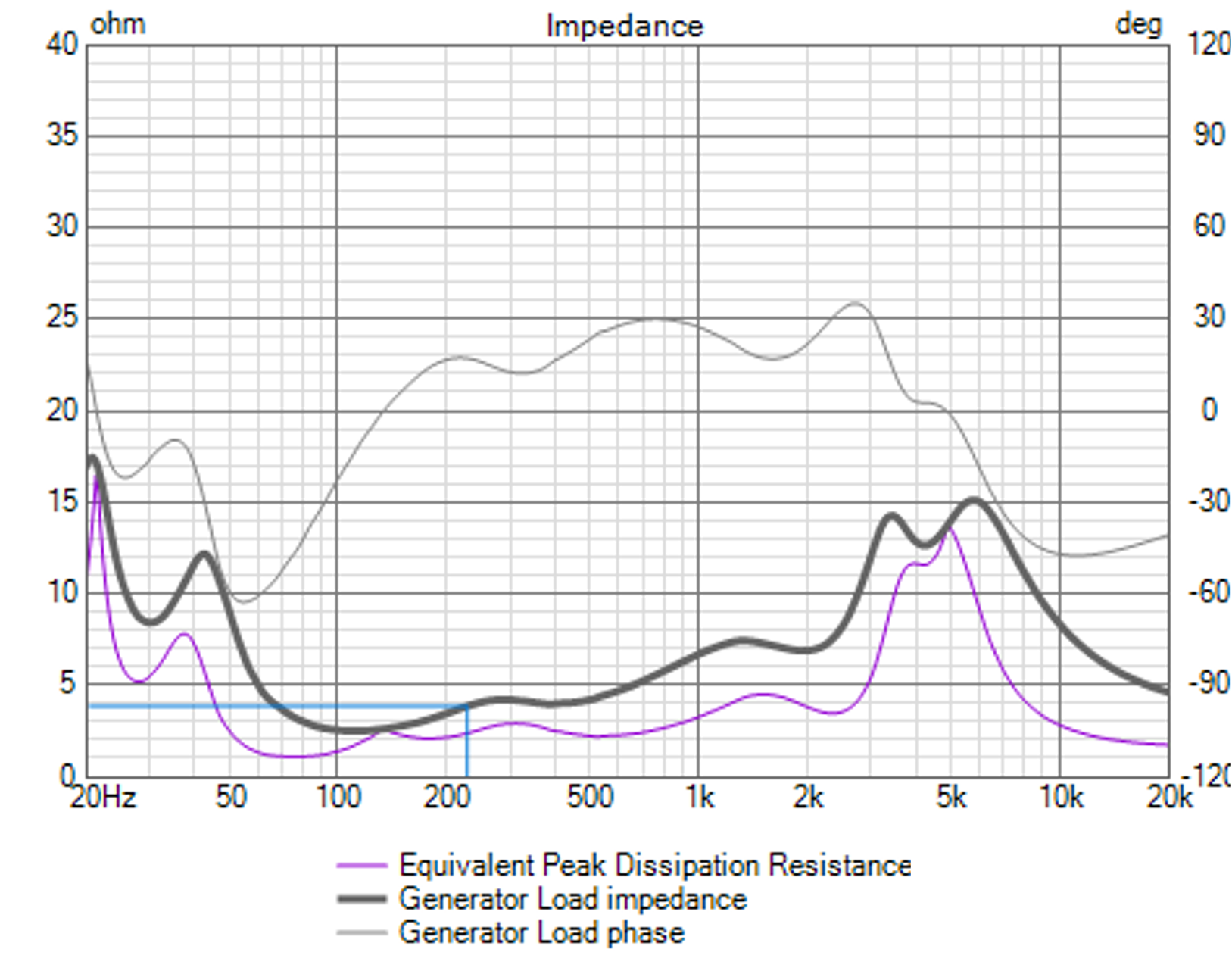

Nominal Impedance: 4 Ohm
Crossover: 3-way with crossovers at 300 Hz / 3000 Hz
Suggested Amplifier Power: 30 watts or more
Dimensions per speaker: 41.5" H x 8.5" W x 13.5" D
Weight per speaker (assembled) 70 lbs

Resources

Instructions (Coming Soon)

Plans (Coming Soon)

Reviews and Accolades

Coming Soon!

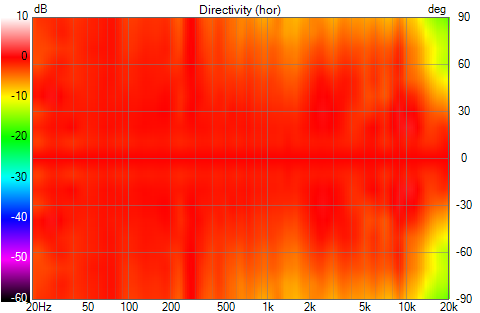

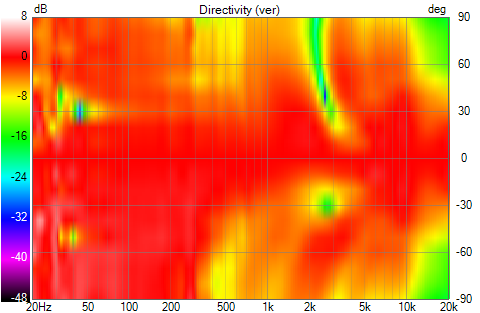

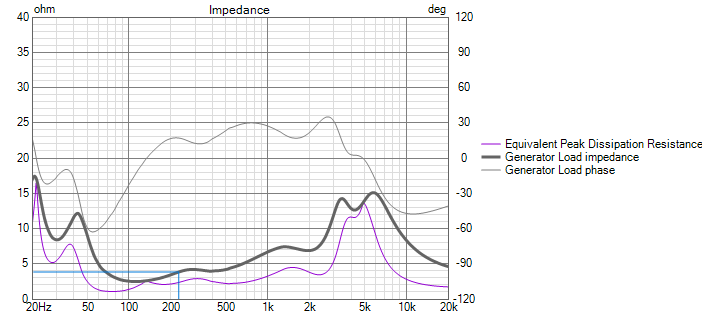

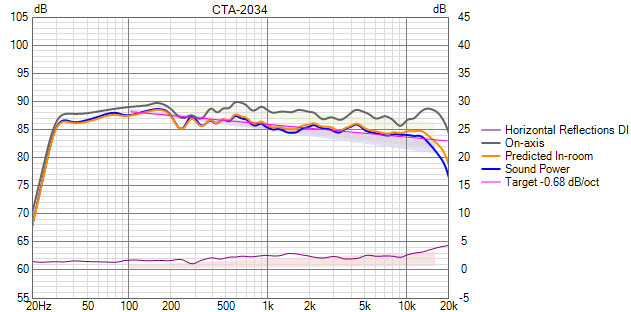

Measurements
