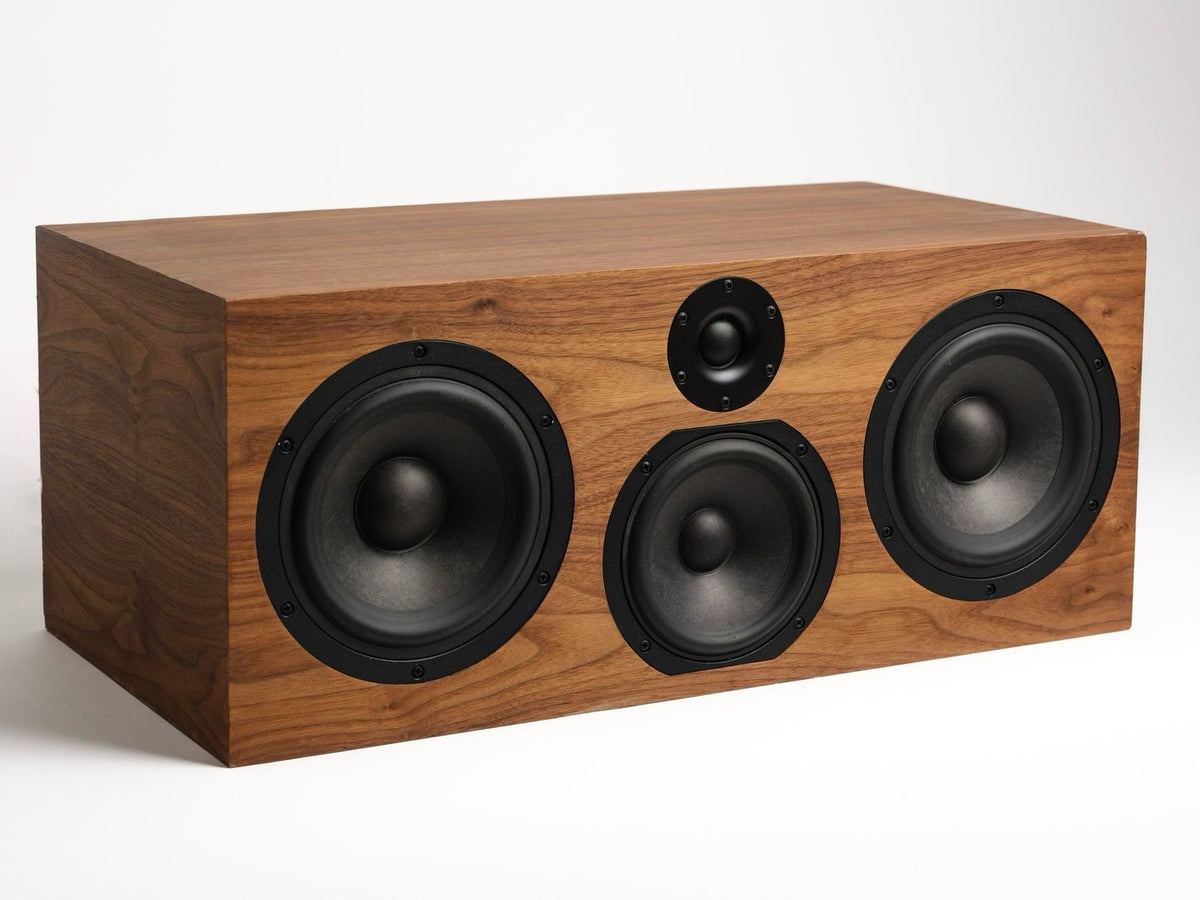

Criton 3TD-XC Center Channel Speaker

The details

About the Criton 3TD-XC Center Channel

This kit comes standard with grills and our upgraded binding posts!

Our all new 3-way center channel was designed to be a perfect match for our flagship 3TD-X tower. Utilizing the LD25X tweeter, an all new LDW6 mid woofer, and a pair of LDW7 woofers in a 3-way configuration provides crystal clear sound with low distortion even at high output levels. The sealed design provides easy integration to a subwoofer while also keeping the size to something manageable in your living room.

The crossover for this kit has 3 options:

Standard Crossover, which has CSS Stealth Cap metalized polypropylene capacitors, steel laminate inductors in the bass section, and sand cast resistors.

Our Superior Crossover with Jantzen Superior Z-Caps, which has Jantzen Superior Z-Caps on the tweeter, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.

Our Superior Crossover with Jantzen Amber Z-Caps, which uses Jantzen Amber Z-Caps with a pure copper foil in the tweeter section, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.

Frequency Response: 60 Hz to 20 kHz +/- 3 dB

In room response: 40 Hz to 20 kHz

Sensitivity: 87.8 dB

Nominal Impedance: 4 Ohm

Crossover: 3-way with crossovers at 300 Hz / 2700 Hz

Suggested Amplifier Power: 30-300 watts

Dimensions per speaker: 9.5" H x 23" W x 12.25" D

Weight (assembled) 54 lbs
