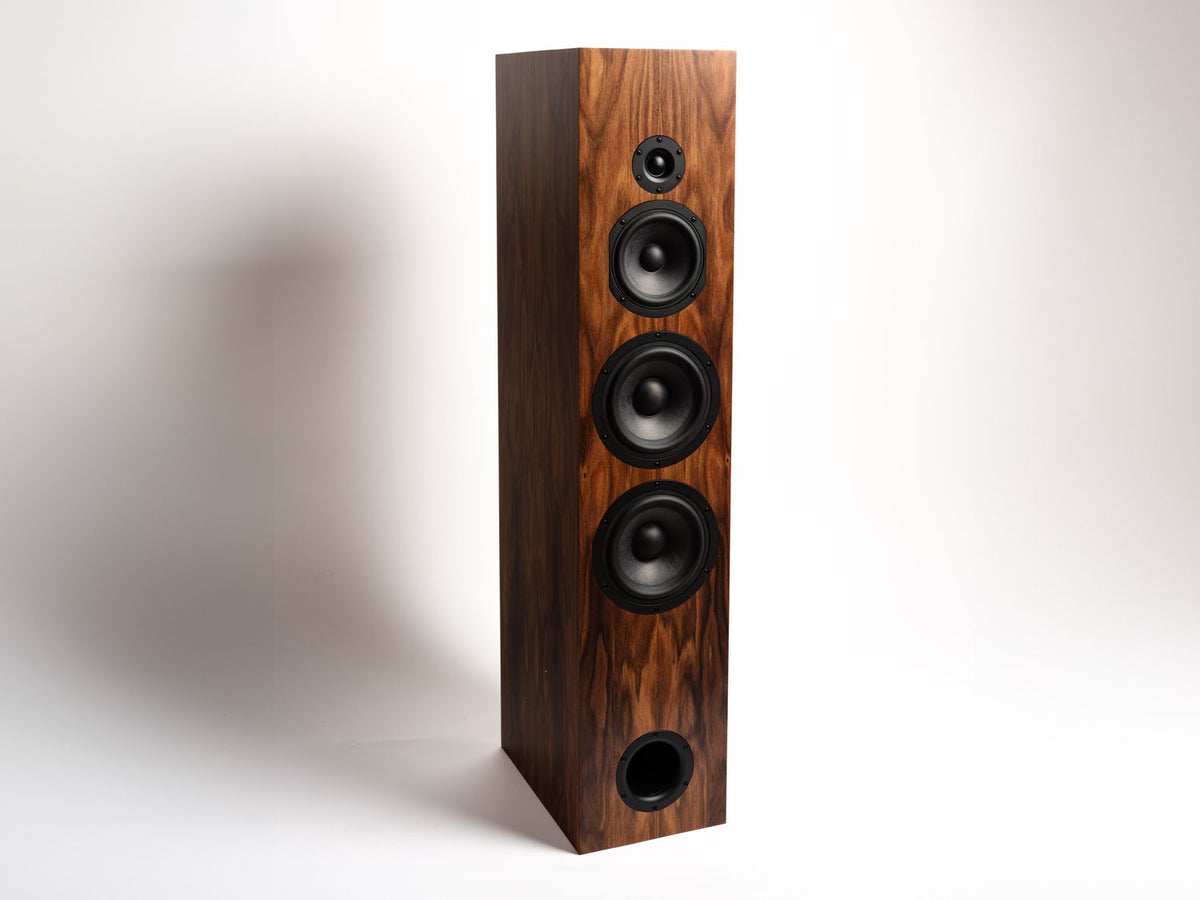

Criton 3TD-X Speaker

The details

About the Criton 3TD-X

This kit comes standard with grills and our upgraded binding posts!

Introducing our all new, 3-way towers using our top of the line LD25X tweeter, an all new LDW6 mid woofer, and a pair of LDW7 woofers. We did something special with this design to create a very even directivity without the use of a waveguide. By not using the waveguide, it creates a wider dispersion speaker which is only down about 10 dB at 10 kHz.

Features:

Ultra low distortion drivers

High output capability

Deep and clean bass response

Extremely broad dispersion with minimal deviations in the directivity index

Custom aluminum flanged 3" ports

The crossover for this kit has 3 options:

Standard Crossover, which has CSS Stealth Cap metalized polypropylene capacitors, steel laminate inductors in the bass section, and sand cast resistors.

Our Superior Crossover with Jantzen Superior Z-Caps, which has Jantzen Superior Z-Caps on the tweeter, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.

Our Superior Crossover with Jantzen Amber Z-Caps, which uses Jantzen Amber Z-Caps with a pure copper foil in the tweeter section, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.

Frequency Response: 32 Hz to 20 kHz +/- 3 dB

In-Room Response: 20 Hz to 20 kHz

Sensitivity: 87.8 dB

Nominal Impedance: 4 Ohm

Crossover: 3-way with crossovers at 300 Hz / 2700 Hz

Suggested Amplifier Power: 30 watts or more

Dimensions per speaker: 41.5" H x 8.5" W x 13.5" D

Weight per speaker (assembled) 70 lbs

Instructions

Plans

Positive-Feedback: "I return to my original statement regarding the Criton 3TD-X's being an incredibly engaging loudspeaker, offering out music that goes beyond detail, clarity, and imaging, and becomes absolutely mesmerizing. The cymbals are so precise, the acoustic guitars so crisp, and the drums so tight, but it is the overall experience that pulls me for the entire LP"

Audio Science Review: "Objectively, the 3TD-X comes close to our target for frequency response and aces distortion measurements... Subjective listening tests impressed me more than objective data, putting a smile on my face on track after track. I can easily say that this is the best KIT speaker I have tested."
