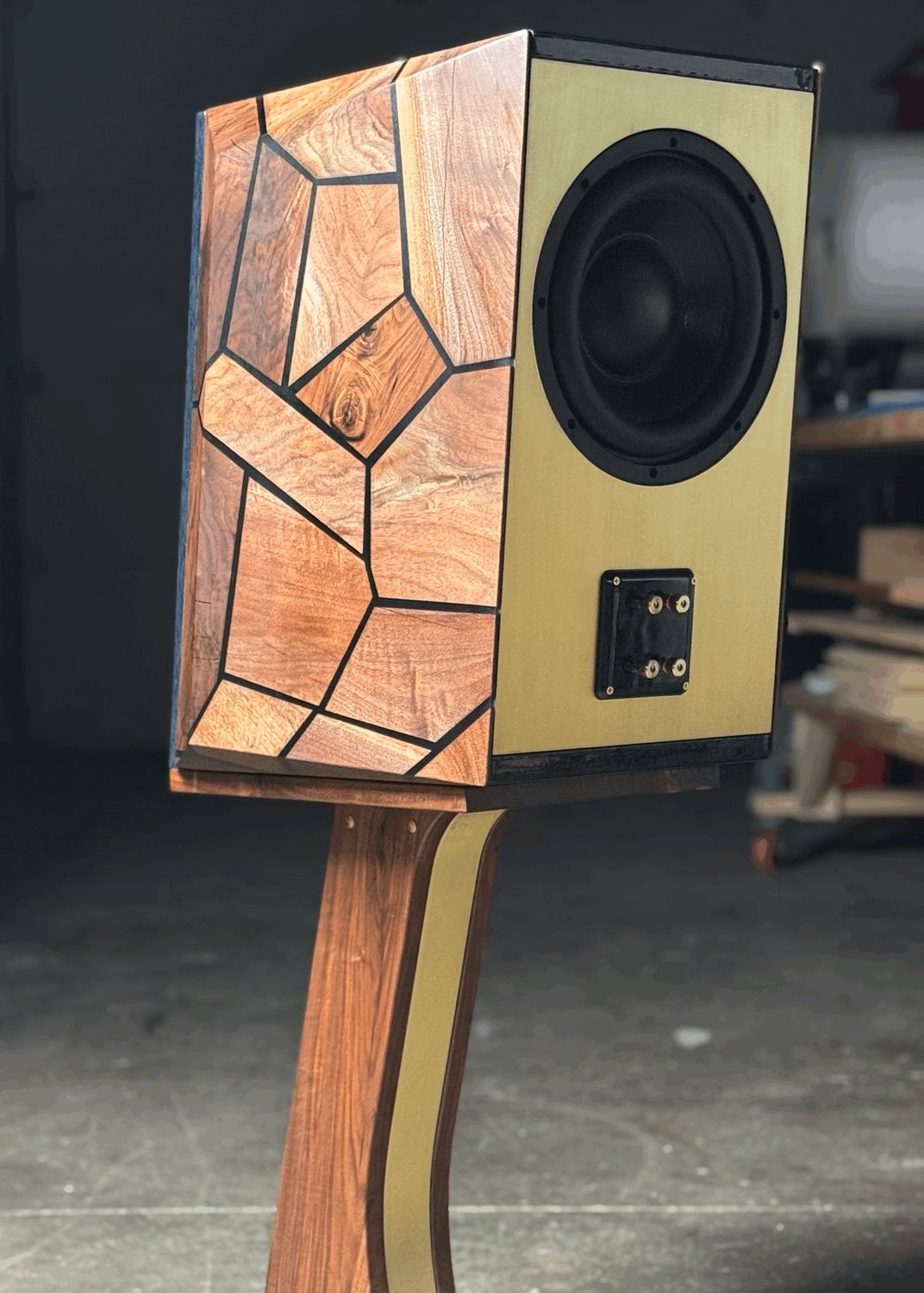

Project Plans — DS1001 10" Waveguide and SDX10

$50

Buy The Plans

Ships from our workshop in Plymouth, Michigan

Shipping

Kits and drivers ship from our workshop in Plymouth, Michigan. Fully finished speakers are built to order by our Custom Shop; contact us for current lead times.

Support

Questions mid-build? Call (734) 892-0886 or email info@css-audio.com and we will help you finish the job.

The details

About the Project Plans — DS1001 10" Waveguide and SDX10

If you've seen this video and want to build this speaker, you can get the plans here. These plans include the following:

3D and 2D CAD for a rectangular box to make it easier to build

Crossover schematics

3D files for the crossover boards

3D files for the waveguide.

Please note, the standard LD25X will not fit the waveguide. You will need the LD25X-SF we use with our waveguides which isn't available anywhere else on our website. You can purchase it here individually or as an add on to the package.

CategoryYouTube Projects

LD25X-SF Tweeter Designed for WaveguidesNot right now, plans only / Yes, please add a pair

WooferJust the Plans / Add a pair of SDX10 drivers

Passive RadiatorsPlans Only / Add a pair of APR10 Passive Radiators
