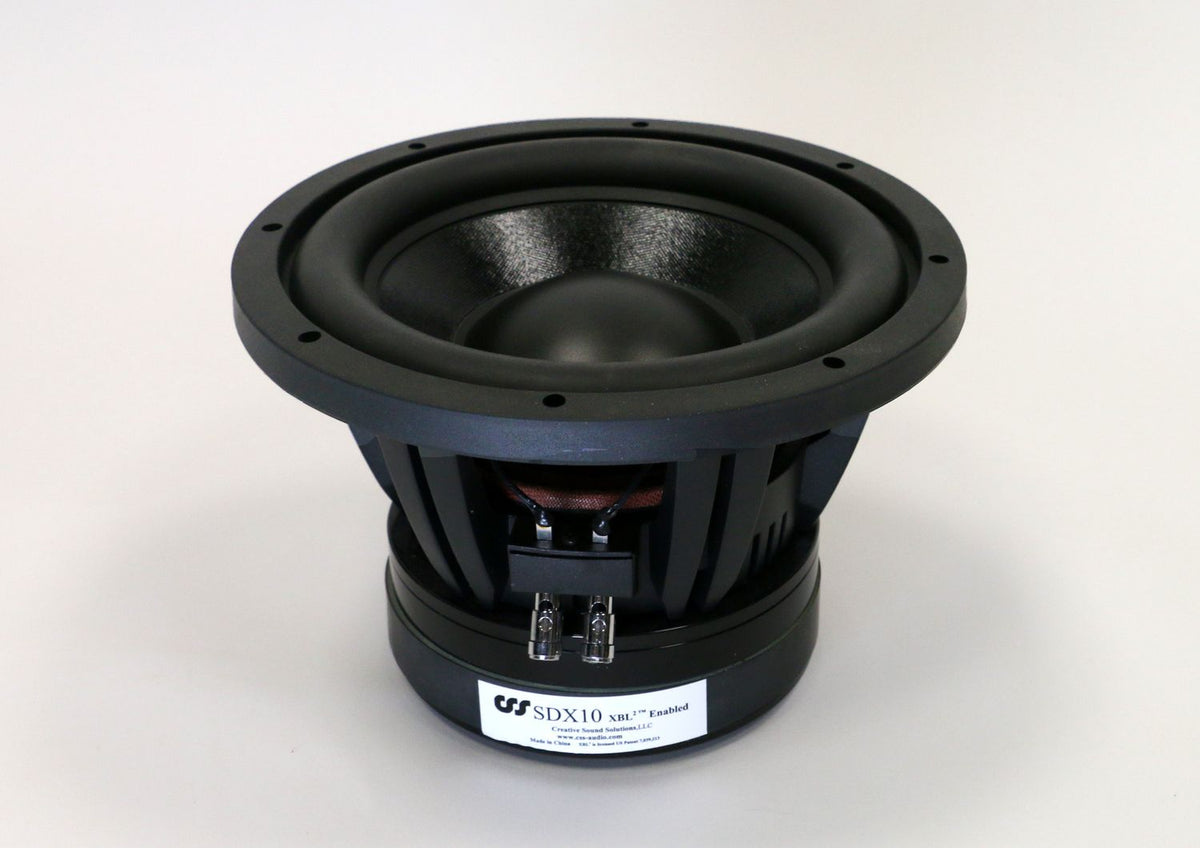

SDX10 — 10" XBL² Subwoofer

The details

About the SDX10 — 10" XBL² Subwoofer

We took the already great SDX10 and made it better. An improved and larger motor structure and additional shorting rings create an extremely broad BL curve with almost 30 mm one way BL excursion capability thanks to the XBL^2 motor design. The new motor added 10 lbs of additional mass to the assembled driver, jumping the weight from 17 lbs to just over 27 lbs. Additionally, the new motor produces minimal changes in Le(x) over the operating bandwidth. Coupled with an improved spider design, the new SDX10 produces 22 mm of excursion capability at 20% distortion subwoofer criteria.

While the SDX10 produces high quality deep bass, it's not completely relegated to subwoofer duty. Thanks to the low inductance motor design, the frequency response has a wide and flat usable bandwidth. This makes the SDX10 suitable as a woofer in a 3-way or even in a 2-way with a waveguide!

Highlights

Paper/carbon fiber blended cone, pressed and surface treated provides inherent internal damping

Semi-progressive spider design gives increased linearity

Natural butyl rubber surround

Shorting rings inside the motor reduce distortion and extend frequency response

Cast frame

High power, low inductance design XBL^2 motor

60.6mm diameter, 6 layer, voice coil

Extremely flat BL curve - almost 30 mm one way BL excursion

750W RMS, 1500W Peak

Note: Due to the XBL^2 design, small signal parameters can show weakened motor force at rest when the voice coil is centered in the gap. Large signal parameters will be more realistic of a subwoofer operating under load.

T/S Parameters

Small Signal

Large Signal

Unit

Re

3.89

3.89

Ohm

Le

0.57

0.83

mH

Fs

28.31

16.98

Hz

Qes

0.786

0.37

Qms

6.038

1.63

Qts

0.697

0.30

Vas

28.7

84.8

l

Sd

314.16

314.16

cm^2

Bl

12.727

12.727

N/A

Kms

7.23

1.63

N/mm

Cms

0.138

0.61

mm/N

Mms

143.48

143.48

g

Full spec sheet coming soon.
