Raw Drivers

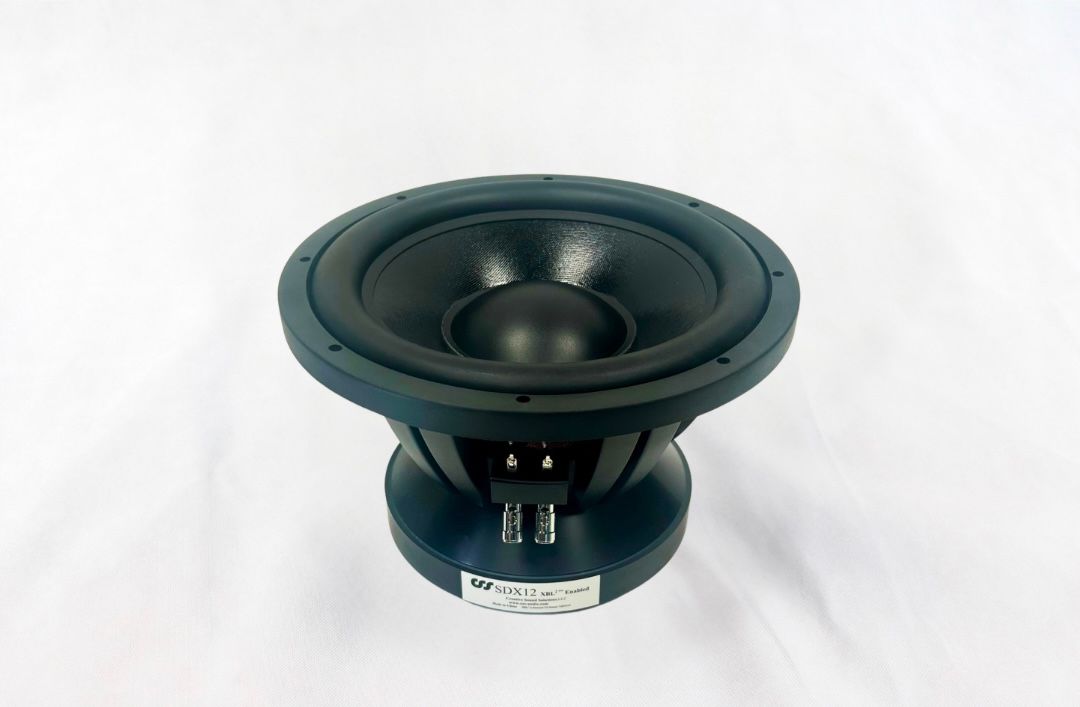

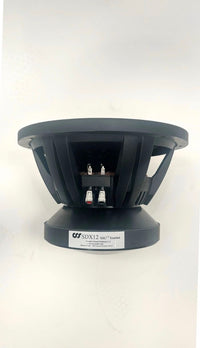

SDX12 — 12" XBL² Subwoofer

$499

The SDX12 is possibly the cleanest 12” subwoofer on the planet. Ultra-low distortion bass from the massive 44 lbs, patented XBL^2 motor lets you hear every subtle nuance of your favorite movie or song. Deep bass at high output is not a problem with 56 mm of peak-to-peak Xmax. Select sealed for the smallest footprint or go with a…

Ships from our workshop in Plymouth, Michigan

Shipping

Kits and drivers ship from our workshop in Plymouth, Michigan. Fully finished speakers are built to order by our Custom Shop; contact us for current lead times.

Support

Questions mid-build? Call (734) 892-0886 or email info@css-audio.com and we will help you finish the job.

The details

About the SDX12 — 12" XBL² Subwoofer

The SDX12 is possibly the cleanest 12” subwoofer on the planet. Ultra-low distortion bass from the massive 44 lbs, patented XBL^2 motor lets you hear every subtle nuance of your favorite movie or song. Deep bass at high output is not a problem with 56 mm of peak-to-peak Xmax. Select sealed for the smallest footprint or go with a dual passive configuration for the ultimate in deep bass and low distortion output from a 12” sub. The SDX12 subwoofer is ideal for both home and car audio environments with its dual 2 Ohm voice coil configuration.

Highlights

Dual 2 Ohm voice coil to create a 4 Ohm load for home use or a 1 Ohm load for car audio use.

Dotted non-pressed paper cone with NBR surround

High power, low inductance design, 2 layer 3" (76mm) copper voice coil and 2 aluminium and 1 copper shorting rings inside the magnet

Forged and machined T-yoke and top plate with larger radiused pole vent for low aerodynamic noise

High excursion spider with integrated lead wire
