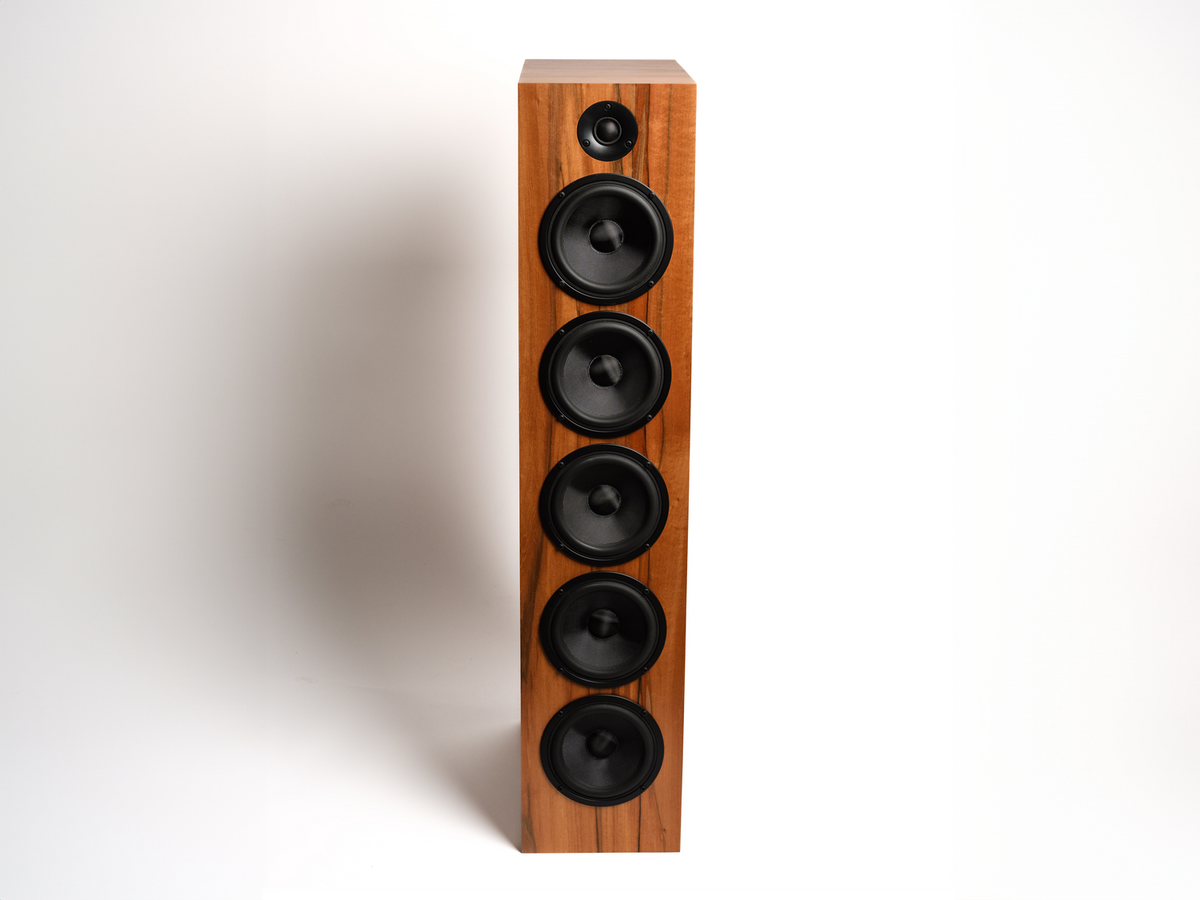

Torii Tower S4

The details

About the Torii Tower S4

Because of the success of our entry level Torii kit, we wanted to introduce a small tower to the lineup. Customer feedback was split between a sealed design with more woofers and a ported design with less, so we stepped up and delivered both. We are excited to announce the launch of our Torii Tower S4 and P2.

Both are 3-way designs that utilize the same drivers as the current Torii for as close a voice match as possible. The Torii Tower S4 steps up the number of woofers to five per side with one operating as a midrange. The design is sealed with a 57 Hz f3, which integrates well into smaller rooms and also provides an easier crossover integration for use in a home theater or when crossing to a subwoofer. With over 15% more surface area than a standard 10" woofer producing bass, this speaker has lots of low end punch and impact while still maintaining a relatively small and slim profile. The 8 Ohm load is easy to drive for any amplifier. These features make it ideal for home theater usage.

Key Features

3-way design for reduced midrange distortion

Sealed f3 of 57 Hz

Easier integration with smaller rooms

Ideal rolloff for crossing to a subwoofer

15% more surface area than a standard 10" woofer

8 Ohm load works great for running on any amplifier

6 dB more output capability than the ported design

Torii Tower S4 vs P2 Comparison

3-way crossover

Anechoic Frequency Response: 57 Hz to 20 kHz +/- 3 dB

In-room Frequency Response: 40 Hz to 20 kHz

Sensitivity: 88.5 dB

Nominal Impedance: 8 Ohm

Minimum Impedance: 5.8 Ohms

Assembled dimensions: 36 x 7.5 x 14 inches H x W x D

Assembled weight: 39 pounds each

Instructions

Cabinet Plans
