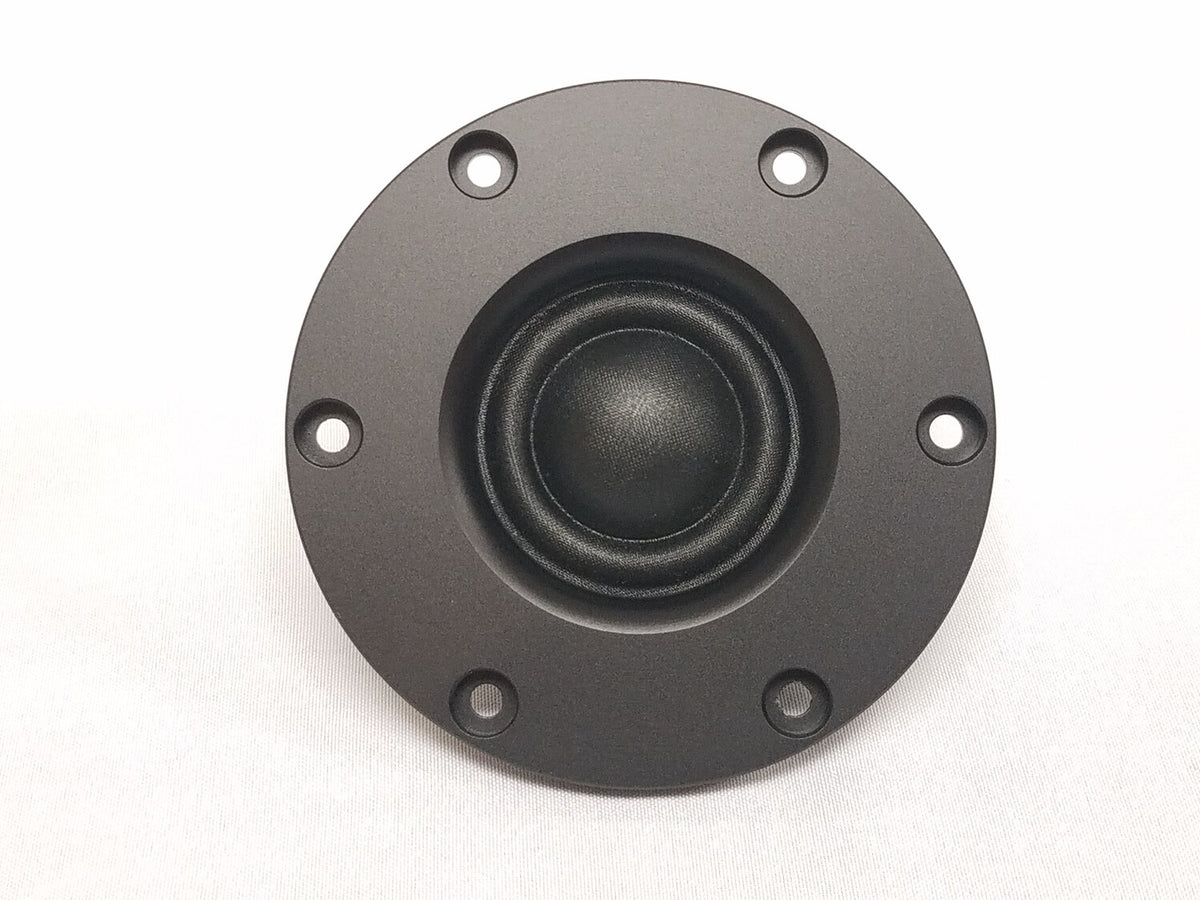

LD22 — 22mm Low Distortion Tweeter

$99

The LD22 series of 22mm high performance tweeters fits a unique position between 19mm (3/4”) and more conventional 25/26mm (1”) units. The 22mm vented copper-clad aluminum voice coil and extra wide surround result in a low Fs and support a crossover down to 2 kHz. They have a rear chamber for very low distortion performance and…

Ships from our workshop in Plymouth, Michigan

Shipping

Kits and drivers ship from our workshop in Plymouth, Michigan. Fully finished speakers are built to order by our Custom Shop; contact us for current lead times.

Support

Questions mid-build? Call (734) 892-0886 or email info@css-audio.com and we will help you finish the job.

The details

About the LD22 — 22mm Low Distortion Tweeter

The LD22 series of 22mm high performance tweeters fits a unique position between 19mm (3/4”) and more conventional 25/26mm (1”) units. The 22mm vented copper-clad aluminum voice coil and extra wide surround result in a low Fs and support a crossover down to 2 kHz. They have a rear chamber for very low distortion performance and the outside ring neodymium magnet affords greater internal volume than that of more traditional neodymium tweeters. The carefully chosen material and the shape of the coated fabric dome enable response with full output to 40 kHz.

Parameters

Nominal size: 22 mm

Nominal impedance: 4 ohm

Recommended frequency range: 2-30 kHz

SPL at 2.83V/1m: 89 dB

Sd: 6.1 sq.cm
