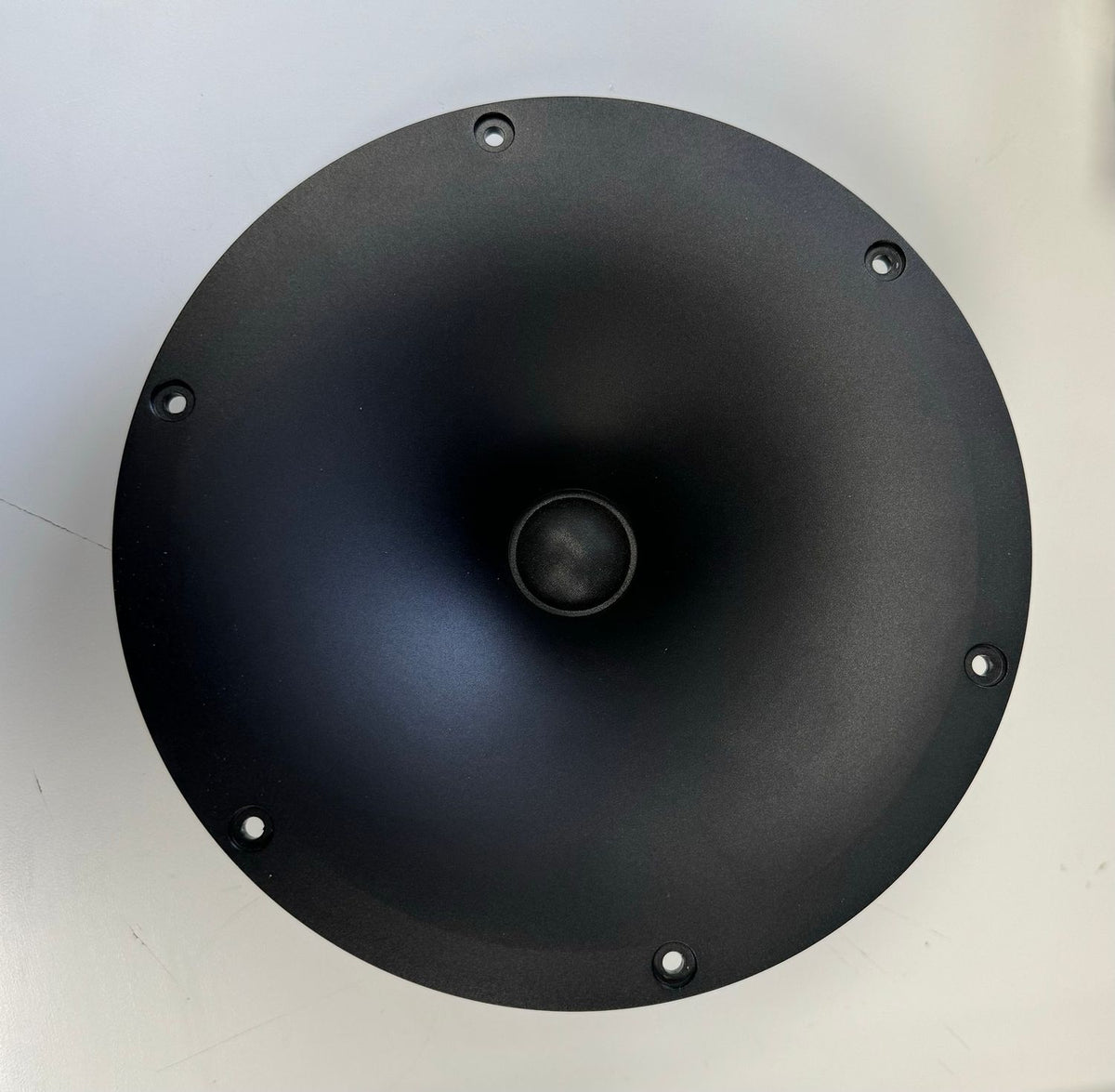

LD25X-WG — 25 mm XBL² Dome Tweeter in 7" Waveguide

The details

About the LD25X-WG — 25 mm XBL² Dome Tweeter in 7" Waveguide

Our all new LD25X-WG tweeter utilizes the same motor and dome as in our standard LD25X but adds a custom, in-house developed 7" aluminum waveguide to allow for a lower crossover and better directivity match to a larger woofer. Finding the patented XBL^2 in a tweeter is rare due to the challenging quality control that is required to ensure the tweeter functions as designed but offers unique benefits over other designs. The extremely flat and broad BL curve provides a larger magnetic field for the voicecoil to operate within. This leads to low levels of inter-modulation distortion by ensuring the voicecoil is always operating in the linear range even at higher powers and lower frequencies.

XBL^2 Split gap motor for lower distortion over a larger range of mechanical operation

Full copper cap over the inner pole piece for reduced inductance and distortion

In-house developed waveguide provides broad but controlled directivity that allows for a lower crossover point and better matching to larger woofers

Solid and thick aluminum waveguide prevents ringing during operation

Impedance: 8 Ohm

Re: 6.4 Ohm

Le (at 10 kHz): 0.066 mH

Fs: 865

Qms: 4.21

Qes: 1.85

Qts: 1.28

Mms: 0.18 g

Bl: 2.76

Sd: 5.3 cm^2

Vas: 0.01 liters

Cms: 0.2 mm/N
